Steel Mooring Buoy
Steel Mooring Buoy Technical Parameter Anchor Pendant Buoy Model HE-APB1000 HE-APB2000 HE-APB3000 HE-APB4000 HE-APB6000 HE-APB8000 HE-APB10000 HE-APB20000
Steel mooring buoy is available for anchorage of ships of different tonnage. It is quite convenient and flexible to operate as using mooring buoy in anchorage.goods lightering works, maintenance & repair of ships can be operated on the berth. Therefore, the mooring buoy is an important anchoring facility of the port
Model Net Buoyancy D×H (m) Suitable for Ship Tonnage (t) HESMB 2.0 3 2.0×1.74 <2000 HESMB 2.6 6 2.6×2.27 <5000 HESMB 3.6 19 3.6×2.14 <10000 HESMB 5.0 28.5 5.0×3.4 <12000 HESMB 5.5 31.2 5.5×3.0 <100000 HESMB 6.0 34.2 6.0×3.2 <150000 HESMB 8.0 40.3 8.0×2.46 <250000

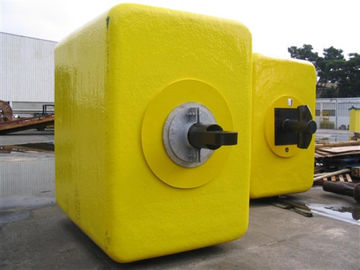

Anchor pendant buoys are available in a wide range of sizes, with choices of suitcase type, modular and non-modular type, custom-made and standard configurations. All are supplied with removable central steel work configured as per to customer’s requirements – typical handing crucifix/pad eye arrangement or a through haws e for use with anchor wire rather than chain.
Anchor Pendant Buoy Technical Parameters
Reserve Buoyancy
(kg)Diameter
(mm)Float Length
(mm)Overall Length
(mm)Weight
(kg)1000 1350 1100 1900 300 2000 1500 1500 2600 500 3000 1850 1500 2600 600 4000 2000 1900 2900 850 6000 2500 2200 3250 1000 8000 2500 2200 3250 1250 10000 3000 2200 3500 1550
20000 3500 3000 4200 2400
*buoy sizes and buoyancy can be customized according to customer design.
You can contact me at any time if you need it. Thank you for reading.
|
|
